Finned Tube

Finned Tube

Core Tube MaterialGrade
Carbon Steel TubesA106 Gr B, A179, A192, SA210 Gr A1/C, SA214,   A333 Gr3 Gr6 Gr8, A334 Gr3 Gr6 Gr8, 09CrCuSb, DIN 17175 St35.8  St45.8, EN 10216 P195 P235 P265, GB/T3087   Gr10 Gr20, GB/T5310 20G 20MnG
Alloy Steel TubesA209 T1 T1a,A213 T2 T5 T9 T11 T12 T22 T91,A335   P2 P5 P9 P11 P12 P22 P91,EN 10216-2 13CrMo4-5 10CrMo9-10 15NiCuMoNb5-6-4
Stainless Steel TubesTP304/304L, TP316/TP316L TP310/310S   TP347/TP347H, TP409/TP410, UNS S31803, UNS S32205, UNS S32304, UNS S32750,   UNS S32760, Monel400
Copper TubesUNS12200/UNS14200/UNS70600, CuNi70/30, CuNi   90/10, C71500
Titanium TubesB338 Gr 2
Fin materialscarbon steel; stainless steels of types 304,   310, 316, 321, 409, and 410; Nickel 200, Aluminum 1060, and Inconel
This table is for   approximate reference purposes. Full specifications should be thoroughly   checked before ordering materials.

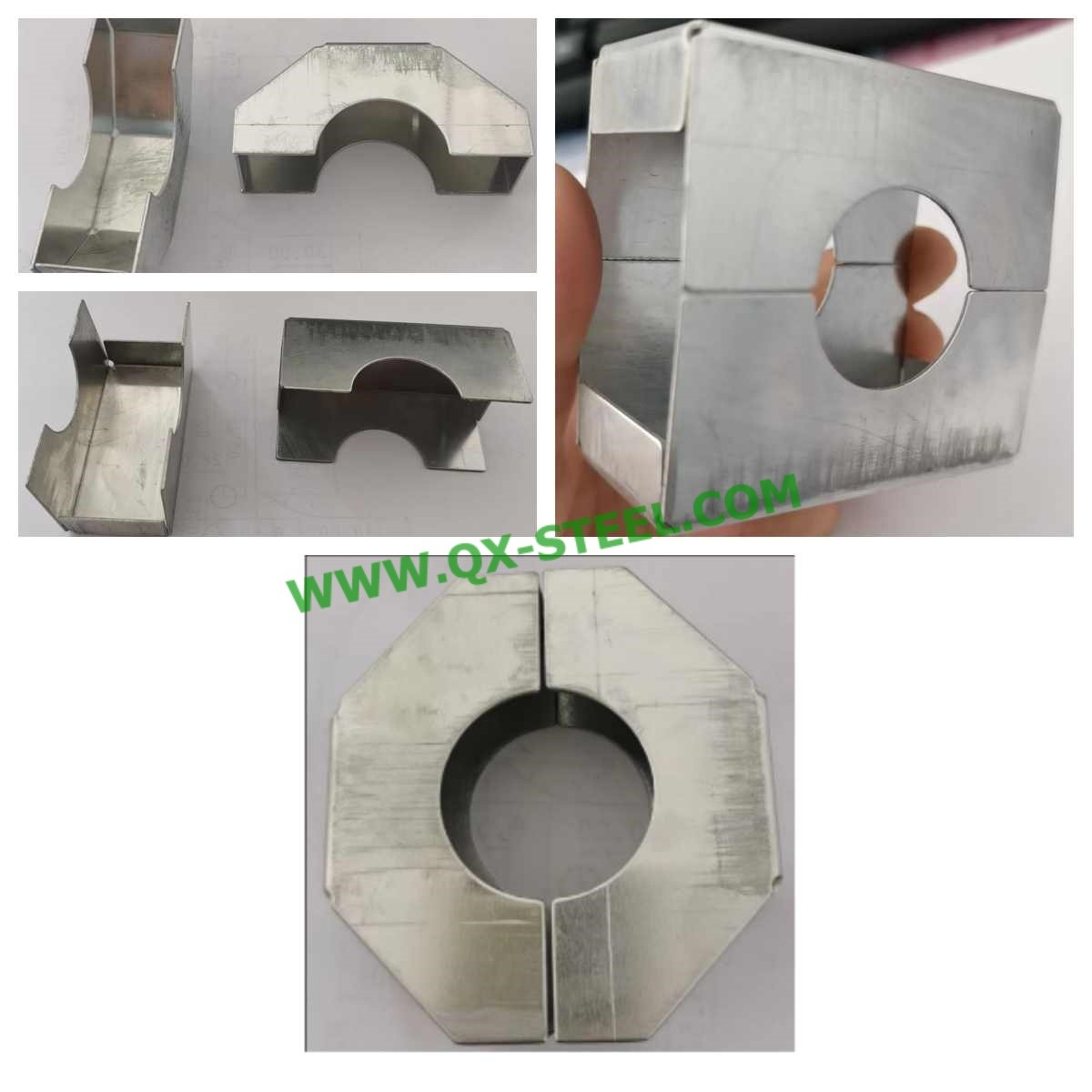

Tube support, spacer box,etc

Mat.: Carbon steel, Stainless Steel, Aluminium, Galvanized/Zinc,etc


Product Details



Product Details
TypeDescriptionBase   tubeFin   specification (mm)Daily   Capacity
O.D. (mm)Fin   pitchFin   heightFin   thick
ExtrudedCopper-Aluminum   Composite Finned Tube 16 - 518 - 30<   2.50.2 ~ 0.615,000   meters
Pure Aluminum Finned Tube8 - 511.6-10< 170.2 ~ 0.615,000   meters
Pure Copper Finned Tube8 - 511.6-10< 170.2 ~ 0.615,000   meters
Steel Aluminum Composite Finned Tube16 - 518 - 30<   2.50.2 ~ 0.615,000   meters
Wrapped / Tension WoundL-type   Spiral Wound Finned Tube16 - 632.1-5< 17~ 0.47,000   meters
LL-type Spiral Wound Finned Tube16 - 632.1-5< 17~ 0.47,000   meters
KL-type Spiral Wound Finned Tube16 - 632.1-5< 17~ 0.47,000   meters
Cold   WoundCold   Wound Steel Finned Tube16 - 632.1-5< 17~ 0.47,000   meters
CorrugatedLow   Finned Threaded Tube16 - 518 - 30<   2.5/5,000   meters
Spiral Pipe16 - 518 - 30<   2.5/5,000   meters
T-shaped   Finned Tube16 - 518 - 30<   2.5/5,000   meters
Corrugated Tube/Bamboo Tube16 - 518 - 30<   2.5/5,000   meters
Expansion Wave Tube16 - 518 - 30<   2.5/5,000   meters
 WeldingSpiral   High Frequency Welding Finned Tube16 -   2193 - 255-300.8-35,000   meters
Studded Tube25 -   355.68 - 305-50.8/100,000   studs
Serrated Spiral High Frequency Welding Finned Tube16 -   2193 - 255-300.8-35,000   meters
H-type And Double H-type Finned Tube25 - 638 - 30<   2001.5-3.520 Ton
Embedded / Imbedded G-FinEmbedded Finned Tube / G-Type Fin16 - 632.1-5< 17~ 0.45,000   meters
EllipticalElliptical   Finned Tube36 x 142.31,   2.54,           2.82, 3.1855 x 260.255,000   meters
LongitudinalLongitudinal   Finned Tube19 - 76/6-320.8-1.25,000   meters
This table is for   approximate reference purposes. Full specifications should be thoroughly   checked before ordering materials.

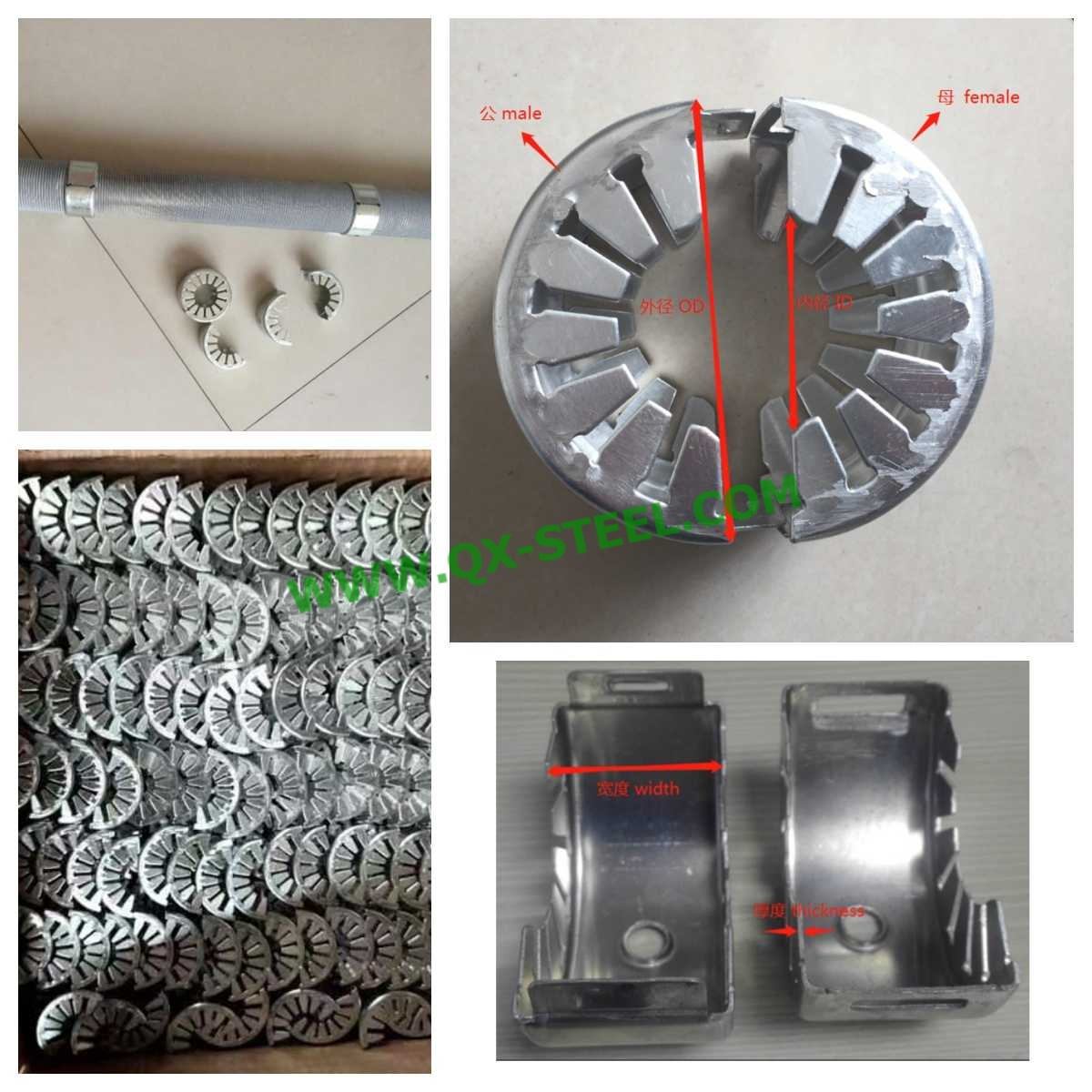

Tube support, spacer box,etc

Mat.: Carbon steel, Stainless Steel, Aluminium, Galvanized/Zinc,etc
