ASME SA283 Gr.C Steel Plate

ASTM A283/A283M and ASME SA283/SA283M standards covers low and intermediate tensile strength carbon steel plates of structural quality. A283 Grade C is typically used

for general structural purposes and has a minimum yield strength of 205 MPa (30,000 psi).

This grade is a low carbon structural steel that is formable and strong. It shows excellent weldability and machining capability. There are four grades: A, B, C, and D

It is also commonly utilized in the construction of buildings, bridges, manufacturing storage tanks (Like: Oil tanks for oil and gas companies) and low pressure, temperature

controlled vessels, petrochemistry, chemistry, electricity, boiler and vessel manufacture industries, etc.

It can be used to make reactor, heat exchange facility, segregator, sphere vessel, oil tank, liquid gas storage tank, nuclear reactor press shell, turbine and other machines.

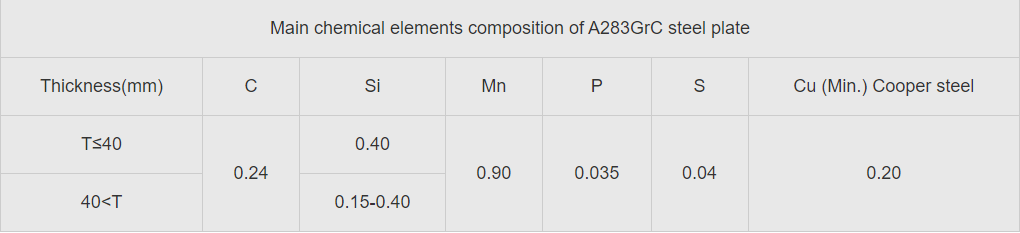

ASME SA283 Grade C / SA283-GR.C mild/ carbon steel plates chemical composition (max):

ASME SA283 Grade C / SA283 GR.C mild/ carbon steel plates mechanical property:

Tensile:  55 to 75 ksi

Yield:  30 ksi min

Elongation:  20% min in 8” 23% min in 2”

Our high quality steel property and timely delivery time is always satiable for our end users. All MTC for these materials shall be issued under EN 10204 3.1 OR EN 10204 3.2.

Technical Requirements & Additional Services for SA283Gr.C steel plate:

♦ High tension test

♦ Low temperature impacting test

♦ Simulated post-welded heat treatment (PWHT)

♦ Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2

♦ Shot blasting and Painting, Cutting and welding as per end user’s demands

♦ Rolling under ASTM A6/A6M for Genenal requirements of structural used steel.

Typical dimensional ranges for SA283 Grade C steel plates are as follows:

Thickness: 3 mm to 610 mm (11GA to 24 inches)

Width: 1500 mm to 4064 mm (59 inches to 157.48 inches)

Length: 3000 mm to 27000 mm (118 inches to 1063 inches)
