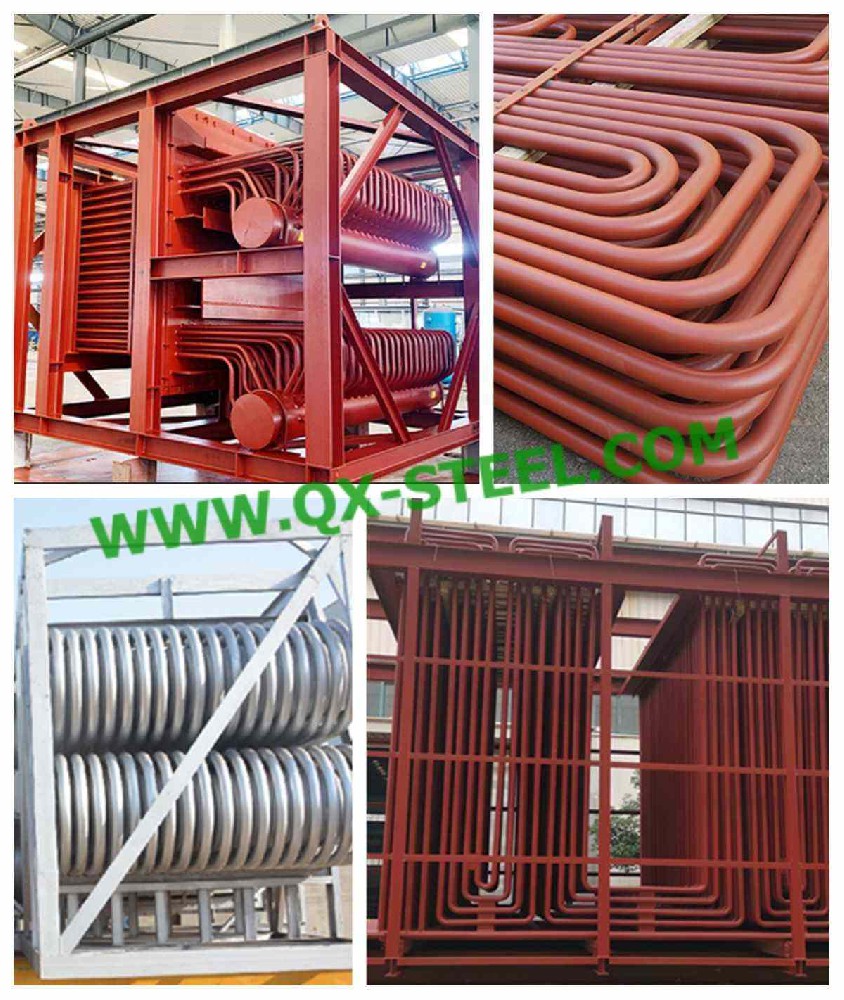

Boiler Pressure Parts

1) Serpentine tube / Coiler:

As per client request.

Material:  T92, TP304H, TP347H, TP304H(SB), TP347HFG, HR3C, super304H, 20G, 12CrMoVG, T91, etc

2) Evaporator:

As per client request.

3) Air preheater:

As per client request.

Layout Item: Horizontal Layout , Vertical Layout

4) Steam drum:

As per client request.

4) Header:

Diameter:¢76mm~¢914mm

Length (max):23000mm

Temperature (℃):300-1500

5) Superheater:

Material: carbon steel, alloy steel or high temperature resistant steel

Tube outer diameter:10-114mm

Tube width:0.8mm- 15mm

Structure: vertical or horizontal

6) Economizer:

Process: material→steel ingot→hot/cold rolling→heat treatment (normalizing and tempering)→inspection→roughing→UT→second heat treatment→finishing→inspection

Material: alloy steel, carbon steel, SA210C SA213T22, etc.

Material Standard: ASTM, EN or ISO etc.

Weight: 10 tons per minute; Maximum: 1000 tons

7) H-type finned tube:

The H-type fin tube is to weld two steel sheets with an arc in the middle symmetrically with the light pipe to form a fin (rib or disc). The front shape is quite similar to the letter "H", which is an efficient expansion.

Heating surface energy-saving products.

The H-type finned tube has the advantages of high welding seam fusion rate, high welding tensile strength, small contact thermal resistance, good heat transfer, and strong expansion ability. The H-type economizer

assembled with it has the characteristics of high heat exchange efficiency, low resistance, low wear and light weight.

Compared with traditional finned tubes and spiral finned tubes, H-shaped finned tubes can maximize the expansion of the heating surface.

Under the same degree of heat exchange effect, H-type fin tube economizer can greatly save space and volume. In addition to H-type economizer, it can also be assembled into H-type evaporator, H-type superheater,

H-type air heater and many other products.

8) Membrane wall:

1. Strength calculation report with applied material information;

2. 100% NDT (non-destructive testing) report of steel plates, pipes and electrodes;

3. 100% X-ray inspection report (weld): to ensure the quality of the entire boiler

4. Hydraulic test report: guarantee standard working pressure and safety

Mainly produces membrane water wall panels

Tube size: Φ38 - 76 mm, or as required

Material: carbon steel, alloy, stainless steel, etc
